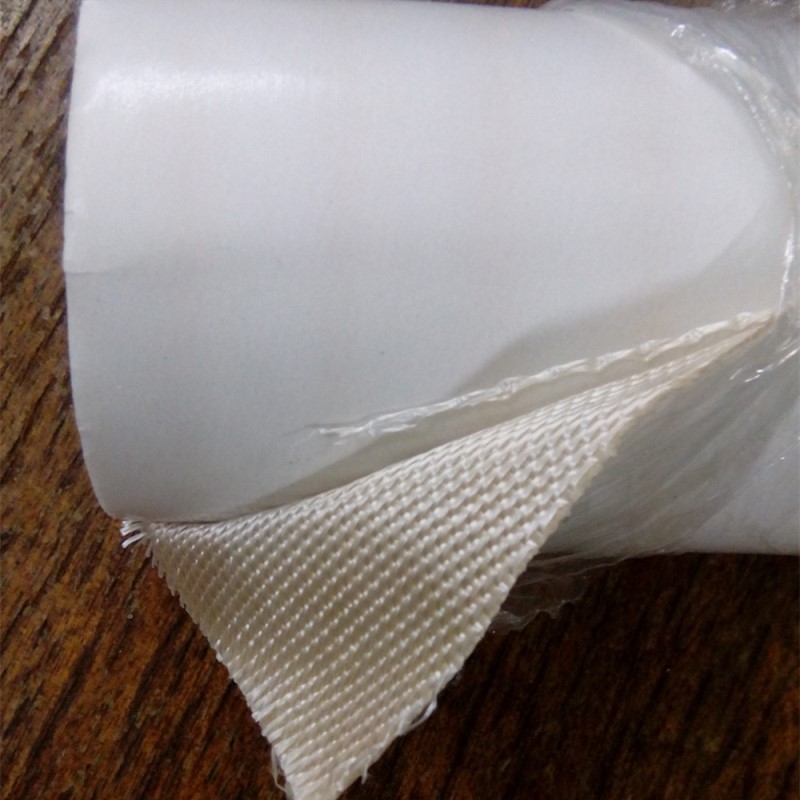

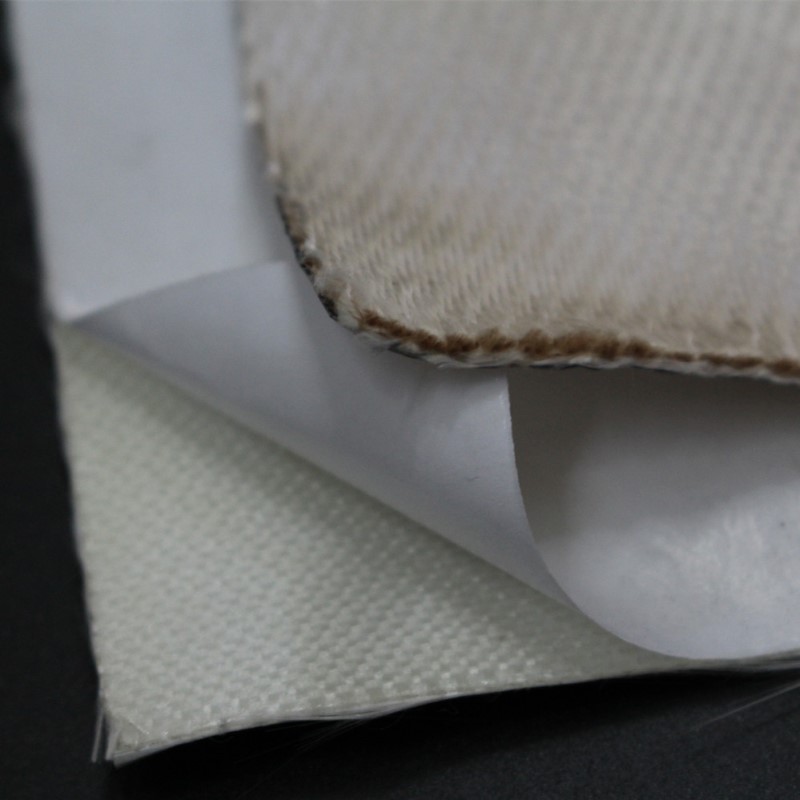

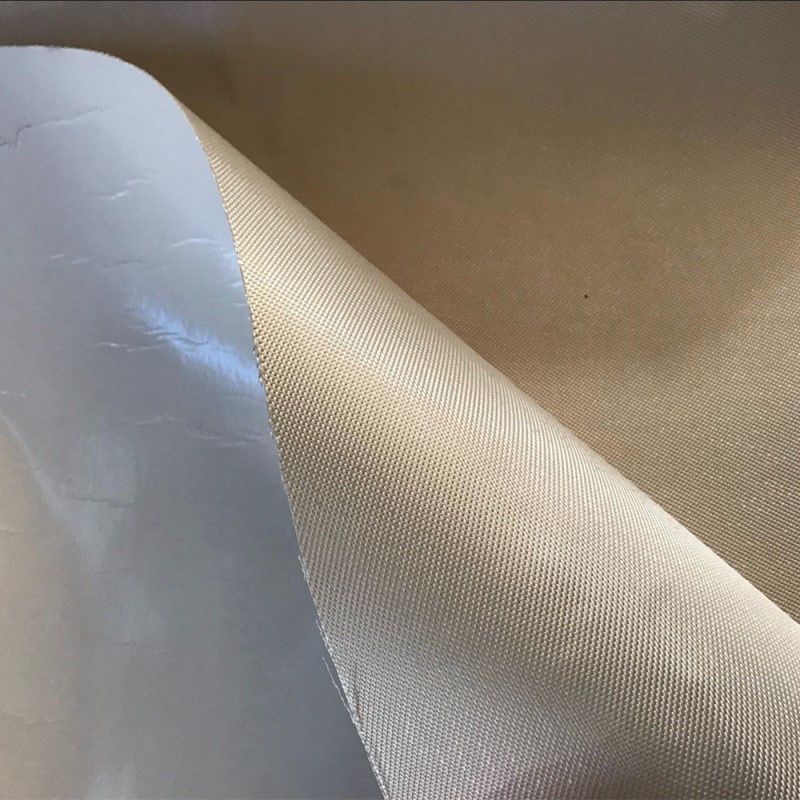

Adhesive Backed Silica Fabric for Custom Heat Shield Panels
Adhesive backed silica fabric is a high-temperature thermal barrier material designed for custom heat shield panels, engine bay barriers, exhaust heat protection, equipment insulation and die-cut thermal protection parts. It combines a heat-resistant silica fabric base with pressure-sensitive adhesive backing for easier installation on panels, ducts, covers, shields and equipment surfaces.
For OEM heat shield manufacturers, automotive thermal protection suppliers and industrial insulation fabricators, self adhesive silica fabric provides a practical solution when the material must be applied quickly without sewing, clamps or complex mechanical fasteners. It can be supplied as roll goods, cut sheets, peel-and-stick pads, die-cut parts or fabricated heat shield panels.
BSTFLEX supplies adhesive backed silica fabric based on 96% high silica fabric, 70% silica fabric, aluminum foil laminated silica fabric, silicone coated silica fabric and other custom structures. Adhesive type, base fabric weight, thickness, width, roll length, foil lamination, die-cut shape and OEM packaging can be developed through our silica fabric product category.
What Is Adhesive Backed Silica Fabric?
Adhesive backed silica fabric is a flexible high-temperature fabric supplied with a pressure-sensitive adhesive layer on one side. The silica fabric side provides heat resistance and insulation support, while the adhesive side allows the material to be bonded to a suitable surface.
The material is commonly used when customers need a cleaner and faster installation method than sewing, riveting, strapping or mechanical clamping. It can be cut into shapes, laminated with aluminum foil, supplied in rolls or converted into finished heat shield panels according to customer drawings.
It is important to select the adhesive according to the real surface temperature. The silica fabric can withstand high heat, but the adhesive layer normally has a lower temperature rating than the silica base fabric. For this reason, adhesive backed fabric is usually designed so that the silica or foil surface faces the heat source, while the adhesive side is bonded to the protected surface.
Why Use Adhesive Backing on Silica Fabric?
Plain silica fabric provides excellent heat resistance, but it normally requires sewing, wrapping, stitching, tying, riveting or other fixing methods. Adhesive backing improves installation efficiency and allows the fabric to be applied directly to panels, covers, equipment surfaces or die-cut heat shield parts.
| Requirement | Plain Silica Fabric | Adhesive Backed Silica Fabric |
|---|---|---|
| Installation method | Requires sewing, clamping, wrapping or mechanical fixing | Peel-and-stick installation on suitable surfaces |
| Custom heat shield panels | Needs additional fixing process | Can be laminated, cut and bonded to panels or parts |
| Die-cut part production | Possible, but fixing must be added separately | Suitable for peel-and-stick pads and custom shaped shields |
| Surface protection | Depends on fabric structure | Can combine silica fabric with foil, silicone or other surface layers |
| Installation speed | Slower for many panel applications | Faster for flat or slightly curved surfaces |
| Best use | Blankets, wraps, curtains and sewn insulation products | Heat shield panels, equipment barriers, die-cut pads and thermal sheets |
Main Applications of Adhesive Backed Silica Fabric
Adhesive backed silica fabric is selected when a high-temperature textile must be installed on a surface or converted into a custom heat shield part. It is widely used in automotive, exhaust, industrial equipment, HVAC, power generation, marine and machinery protection applications.
Applied to metal, composite or formed panels to create thermal barrier panels for OEM equipment, vehicles and industrial systems.
Used to protect nearby wiring, hoses, sensors, plastic parts, batteries and painted surfaces from radiant heat.
Installed near exhaust pipes, mufflers, catalytic converters, turbo zones and EGR components to reduce heat transfer.
Applied to machinery panels, ducts, tanks, enclosures and heated equipment surfaces where thermal protection is required.
Converted into peel-and-stick shapes according to drawings, samples or installation space for fast assembly.
Used as a thermal layer in insulation covers, jackets, pads and fabricated heat protection assemblies.
Adhesive Backed Silica Fabric for Automotive Heat Shield Panels
Automotive heat shield panels often require flexible, thin and high-temperature thermal barrier materials. In engine compartments and exhaust areas, components may be exposed to radiant heat from manifolds, turbochargers, catalytic converters, EGR pipes, exhaust pipes and mufflers.
Adhesive backed silica fabric for custom heat shield panels can be laminated, die cut and applied to shield structures to protect wire harnesses, hoses, fluid lines, plastic clips, sensors, underbody panels and nearby body structures. When aluminum foil lamination is added, the material also provides a reflective surface for radiant heat shielding.
| Automotive Area | Heat Problem | Recommended Structure |
|---|---|---|
| Engine bay panels | Radiant heat from manifold, turbo or EGR components | Adhesive backed aluminum foil silica fabric |
| Exhaust tunnel | Heat transfer from exhaust pipe to nearby panels | Foil laminated high silica fabric with adhesive backing |
| Wire harness protection | Heat damage to insulation, clips and connectors | Die-cut adhesive backed thermal barrier pad |
| Hydraulic and fuel line areas | Radiant heat near hoses and fluid lines | Adhesive backed silica heat shield panel or shaped cover |
| Battery and sensor protection | Temperature rise near sensitive components | Reflective adhesive backed insulation sheet |
Adhesive Backed Silica Fabric for Industrial Heat Shielding
In industrial environments, adhesive backed silica fabric can be applied to equipment surfaces, machine panels, ducts, pipe shields, furnace area barriers and heated enclosures. It is especially useful when the customer needs a clean installation method and does not want to weld brackets, drill mounting holes or sew a fabric cover.
Used on panels close to hot motors, heaters, furnaces, ducts or process equipment.
Applied to selected duct areas where radiant heat reduction or surface temperature control is required.
Helps protect electrical enclosures, control panels and sensitive instruments from nearby heat sources.
Used around exhaust routes, engine compartments and thermal barrier panels for power equipment.
Applied to surfaces requiring flexible thermal protection and radiant heat reduction.
Converted into custom shapes for equipment manufacturers needing repeatable heat protection parts.
Common Adhesive Backed Silica Fabric Structures
The best construction depends on whether the application needs direct insulation, radiant heat reflection, abrasion resistance or easy panel installation. BSTFLEX can develop different adhesive backed silica fabric structures according to working conditions.
| Structure | Main Function | Typical Application |
|---|---|---|
| Plain Silica Fabric with Adhesive Backing | Flexible heat-resistant textile with peel-and-stick installation | General thermal barrier sheets and insulation pads |
| Aluminum Foil Silica Fabric with Adhesive Backing | Radiant heat reflection plus high-temperature fabric support | Engine bay barriers, exhaust heat shields and thermal panels |
| Silicone Coated Silica Fabric with Adhesive Backing | Improved surface durability and cleaner handling | Equipment protection, reusable panels and industrial covers |
| High Silica Fabric with Custom Adhesive | Higher thermal resistance with application-specific bonding system | OEM heat shield panels and special thermal protection parts |
| Die-Cut Adhesive Backed Silica Fabric | Custom shapes for fast assembly | Automotive, generator, machinery and equipment heat shields |
Adhesive Backed Silica Fabric vs Adhesive Backed Fiberglass Fabric
Both materials can be made with adhesive backing, but silica fabric is selected when the application requires higher thermal performance than ordinary fiberglass fabric. Fiberglass fabric is still useful for general insulation, but high silica fabric provides a stronger safety margin in more severe heat environments.
| Comparison Point | Adhesive Backed Silica Fabric | Adhesive Backed Fiberglass Fabric |
|---|---|---|
| Base material | High silica fabric | Fiberglass fabric |
| Heat resistance | Higher, depending on silica grade | Suitable for general heat protection |
| Best use | Exhaust, engine bay, furnace, industrial heat shield panels | General insulation sheets and moderate heat barriers |
| Material cost | Higher | More economical |
| OEM heat shield application | Preferred for demanding high-temperature projects | Suitable when the heat exposure is moderate |
How to Choose Adhesive Backed Silica Fabric
The correct adhesive backed silica fabric should be selected based on the heat source, surface temperature, installation surface, required thickness, flexibility, adhesive performance and finished part design.
Choose Aluminum Foil Laminated Adhesive Backed Silica Fabric When:
- The main heat problem is radiant heat from exhaust, engine, furnace or hot equipment.
- The aluminum foil side can face the heat source for improved reflection.
- The customer needs thermal barrier panels, engine bay barriers or exhaust heat shield pads.
- The project requires die-cut shapes, peel-and-stick sheets or custom OEM heat shield parts.
Choose Plain Adhesive Backed Silica Fabric When:
- The application mainly needs a flexible insulation layer without reflective foil.
- The protected surface is not directly exposed to strong abrasion or heavy liquid contamination.
- The customer wants a simple high-temperature fabric with easy installation.
- The material will be used inside a multi-layer heat shield construction.
Choose Custom Die-Cut Parts When:
- The heat shield must fit a specific panel, cover, bracket, machine or vehicle component.
- The customer has drawings, samples, CAD files or fixed installation dimensions.
- The assembly line needs repeatable peel-and-stick parts instead of manual cutting.
- The buyer wants finished thermal protection parts with packaging and labeling.
Important Installation Notes
For best performance, the surface should be clean, dry and suitable for adhesive bonding. Oil, dust, rust, loose paint or rough contamination can reduce bonding strength. The material should be pressed firmly during installation to ensure full adhesive contact.
In most heat shield applications, the silica fabric or aluminum foil side should face the heat source, and the adhesive side should face the protected surface. The adhesive should not normally be placed directly against flame, molten splash or direct exhaust pipe contact unless a special adhesive system and installation structure have been tested for that condition.
For severe applications, mechanical fixing, edge sealing, multilayer construction or custom formed shields may be recommended together with adhesive backing.
What Information Is Needed for a Quotation?
To recommend the correct adhesive backed silica fabric, BSTFLEX needs the real application conditions. A heat shield panel near exhaust pipe, an engine bay barrier and an industrial machine panel may require different fabric and adhesive structures.
- Application: heat shield panel, engine bay barrier, exhaust insulation pad, duct insulation, equipment surface protection or die-cut part.
- Heat source: exhaust pipe, turbocharger, manifold, furnace, hot duct, engine component, heater or process equipment.
- Heat type: radiant heat, contact heat, continuous heat, intermittent heat or short-term peak heat.
- Surface temperature on the adhesive side if available.
- Base material preference: 96% high silica fabric, 70% silica fabric or custom silica fabric grade.
- Surface option: plain silica, aluminum foil laminated, silicone coated or other structure.
- Adhesive requirement: standard pressure-sensitive adhesive or higher-temperature adhesive option.
- Size: roll width, roll length, sheet size, die-cut drawing, hole location or custom shape.
- Quantity: prototype samples, trial order, OEM production or distributor stock.
- Packaging requirement: bulk roll, individual sheets, labels, private label or assembly-line packaging.
BSTFLEX Manufacturing Capability
BSTFLEX manufactures and supplies adhesive backed silica fabric for custom heat shield panels, engine bay barriers, exhaust heat protection, industrial equipment insulation and OEM thermal barrier parts. We support both raw material supply and finished component conversion.
Available options include 96% high silica fabric, 70% silica fabric, aluminum foil laminated silica fabric, silicone coated silica fabric, vermiculite coated silica fabric and adhesive backed silica fabric. We can supply roll goods, sheets, die-cut pads, sewn parts, laminated panels and custom fabricated heat shield assemblies.
For related high-temperature textile products, visit the BSTFLEX silica fabric product page.
Request Adhesive Backed Silica Fabric for Custom Heat Shield Panels
Need adhesive backed silica fabric for heat shield panels, engine bay barriers, exhaust heat protection, equipment insulation or die-cut thermal parts? Send your drawings, samples, working temperature and installation requirements. BSTFLEX can recommend the correct base fabric, surface treatment, adhesive backing and finished construction.
- 96% high silica fabric and 70% silica fabric options
- Plain, aluminum foil laminated, silicone coated and custom surface structures
- Adhesive backed rolls, sheets, pads and die-cut heat shield parts
- Custom thickness, width, adhesive system, foil type and finished shape
- OEM fabrication, private label packaging and sample-based development
Conclusion
Adhesive backed silica fabric is a practical material for custom heat shield panels because it combines high-temperature silica fabric with easier peel-and-stick installation. It is widely used in engine bay barriers, exhaust heat protection, industrial equipment insulation, die-cut thermal pads and OEM thermal barrier panels.
For radiant heat shielding, aluminum foil laminated adhesive backed silica fabric is usually the preferred structure. For internal insulation layers or multi-layer heat shield assemblies, plain adhesive backed silica fabric may be suitable. For demanding OEM projects, the adhesive type, silica fabric grade, foil lamination, thickness and die-cut shape should be selected according to the actual heat source and installation surface.
BSTFLEX can supply adhesive backed silica fabric as rolls, sheets, cut pieces, die-cut pads, sewn covers or custom heat shield panels according to drawings, samples and production requirements.
FAQ: Adhesive Backed Silica Fabric
What is adhesive backed silica fabric used for?
Adhesive backed silica fabric is used for custom heat shield panels, engine bay barriers, exhaust heat protection, industrial equipment insulation, die-cut thermal pads and peel-and-stick thermal barrier sheets.
Can adhesive backed silica fabric be used near exhaust systems?
Yes. It can be used near exhaust systems as a radiant heat barrier or heat shield panel, but the adhesive side should be protected from excessive direct heat. Aluminum foil laminated adhesive backed silica fabric is commonly selected for exhaust heat shielding.
Is adhesive backed silica fabric the same as adhesive backed fiberglass?
No. Adhesive backed silica fabric uses a high silica fabric base and is selected for higher-temperature applications. Adhesive backed fiberglass fabric is usually used for more moderate heat protection and general insulation.
Can adhesive backed silica fabric be die cut?
Yes. BSTFLEX can supply adhesive backed silica fabric as die-cut pads, custom heat shield shapes, sheets, rolls or OEM thermal barrier parts according to drawings or samples.
Which side should face the heat source?
In most applications, the silica fabric side or aluminum foil surface should face the heat source. The adhesive side should bond to the protected surface and should not be directly exposed to flame or severe heat unless the full structure has been tested for that condition.
Can BSTFLEX customize adhesive backed silica fabric?
Yes. BSTFLEX can customize the silica fabric grade, fabric weight, thickness, width, aluminum foil lamination, silicone coating, adhesive backing, die-cut shape, sewing, packaging and OEM heat shield construction.
