Heat Resistant Hydraulic Hose Protective Fire Sleeve
Home / Hydraulic Hose Protection /

Heat Resistant Hydraulic Hose Protective Fire Sleeve

Fire resistant sleeve for hose
Fire resistant sleeve for hose
Fire resistant sleeve for hose
Fire resistant sleeve for hose
Fire resistant sleeve for hose

Heat Resistant Hydraulic Hose Protective Fire Sleeve

Heat Resistant Hydraulic Hose Protective Fire Sleeve is a high-temperature insulation sleeve designed to protect hydraulic hoses, cables, and pipelines from extreme heat, flame exposure, and molten metal splash. Constructed from braided fiberglass coated with durable silicone rubber, this hydraulic hose fire sleeve provides reliable thermal insulation and external protection in demanding industrial environments.



With continuous temperature resistance up to 260°C (500°F) and short-term flame protection up to 1650°C (3000°F), it is widely used in steel plants, automotive systems, marine engines, and heavy machinery applications where fire protection and hose safety are critical.

  • Payment:

    FOB, EXW, CIF
  • Product Origin:

    China
  • Color:

    Iron oxide red, orange red, black, silver, gray, b
  • Shipping Port:

    Shanghai, Ningbo or any other port
  • Lead Time:

    3-10 days

Heat Resistant Hydraulic Hose Protective Fire Sleeve

Heat Resistant Hydraulic Hose Protective Fire Sleeve is a high-performance thermal protection sleeve designed to protect hydraulic hoses, cables, and pipelines from extreme heat, flame exposure, and molten metal splash. Constructed from a braided fiberglass inner layer coated with high-temperature silicone rubber, this fire sleeve provides reliable insulation and flame resistance in demanding industrial environments.

It is widely used as a hydraulic hose fire sleeve in steel plants, foundries, automotive facilities, marine engines, and heavy machinery systems where hose failure due to heat or fire presents serious safety risks.



Proven Certifications and Tests:

MSHA (Mine Safety and Health Administration): Certified for safety in mining applications.

-70°C Test: Endures low temperatures, ensuring functionality in cold environments.

260°C Test: Demonstrates resilience to high temperatures, maintaining performance under heat stress.

UL 1441: Complies with Underwriters Laboratories standards for electrical insulation systems.

ROHS and REACH: Conforms to European Union regulations for the restriction of hazardous substances.

DIN EN45545-2:2020 Rail Certification: Meets European standards for fire protection in rail vehicles.

DIN 45545 Low Smoke Toxicity: Ensures minimal smoke emission in case of fire, enhancing safety for passengers and personnel.

DIN 54837/5510-2 Rail Vehicle Certification: Certified for resistance to combustibility in rail transportation applications.

NF EN ISO 11925-2 (15 and 30 sec): Compliant with European fire test standards for construction materials.

TB/T 3138-2018: Meets technical specifications for flame retardant materials in railway locomotives and vehicles.

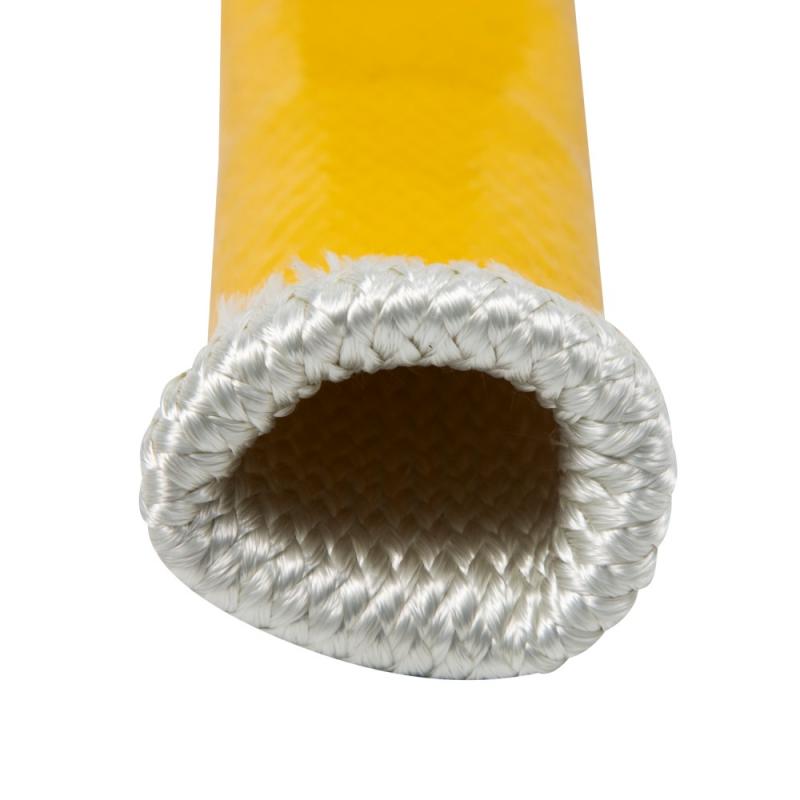

Silicone-Coated Fiberglass Construction

The fire sleeve features a dual-layer structure engineered for thermal protection:

Inner Layer – Braided Fiberglass

  • Excellent thermal insulation

  • Non-combustible material

  • High structural stability

Outer Layer – Silicone Rubber Coating

  • Flame resistant and self-extinguishing

  • Resistant to molten metal splash

  • Waterproof and oil-resistant

  • High abrasion resistance

This combination provides both thermal insulation and external mechanical protection.


High-Temperature Performance

Heat Resistant Hydraulic Hose Protective Fire Sleeve is designed for extreme conditions:

  • Continuous working temperature: up to 260°C (500°F)

  • Short-term flame resistance: up to 1650°C (3000°F)

  • Resistant to molten metal splash

  • Maintains flexibility under thermal cycling

It significantly reduces heat transfer to hydraulic fluids and surrounding components.


Hydraulic Hose Fire Protection

Hydraulic systems operating near furnaces, exhaust systems, or high-temperature equipment are vulnerable to fire hazards. This hydraulic hose fire sleeve helps:

  • Protect hoses from direct flame exposure

  • Reduce risk of hose rupture due to overheating

  • Improve system safety compliance

  • Minimize downtime and maintenance costs

  • Extend hose service life

It acts as a critical safety barrier in high-risk environments.


Applications

Steel & Foundry Industry

  • Protection against molten metal splash

  • Furnace-adjacent hydraulic systems

Automotive & Heavy Equipment

  • Engine compartment heat zones

  • Exhaust-adjacent hydraulic lines

Oil & Gas

  • Fire protection for hydraulic hoses

Marine & Offshore

  • Engine room hose insulation

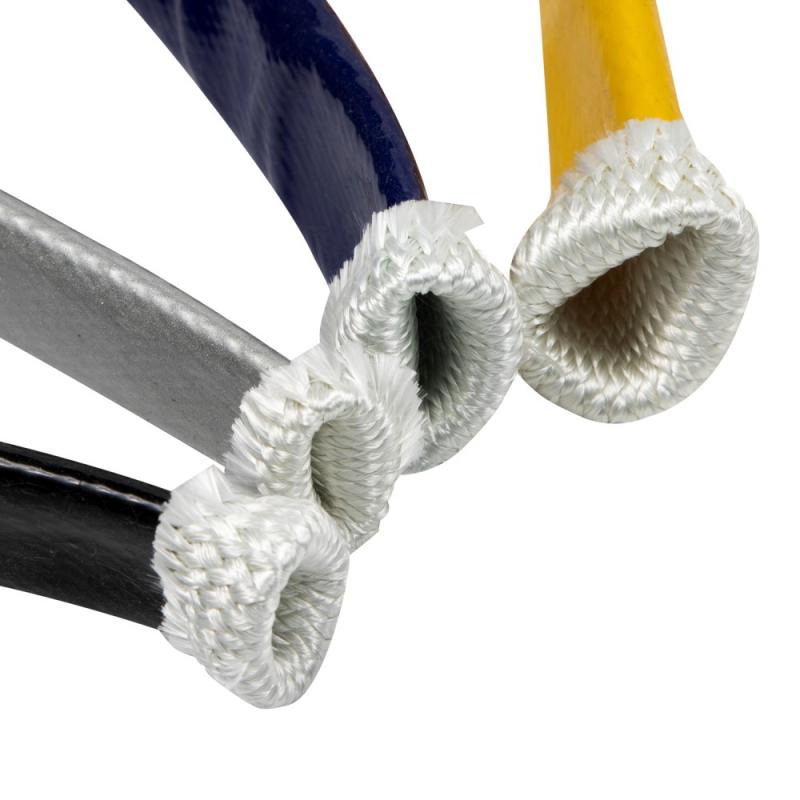

Available Specifications

  • Wide range of inner diameters

  • Standard color: iron oxide red

  • Custom colors available

  • Continuous lengths or cut-to-size

  • Optional hook-and-loop (split fire sleeve) version


Advantages Over Standard Fiberglass Sleeves

Feature Fire Sleeve Standard Fiberglass Sleeve
Silicone Coating Yes No
Molten Splash Resistance Yes Limited
Waterproof Yes No
Flame Resistance Superior Moderate
Abrasion Resistance Higher Moderate

This makes fire sleeve the preferred solution for high-risk fire environments.


Frequently Asked Questions

What is a hydraulic hose fire sleeve used for?
It protects hydraulic hoses from heat, flame, and molten metal exposure.

Is fire sleeve heat resistant?
Yes. It withstands continuous temperatures up to 260°C and short-term flame exposure up to 1650°C.

Does it prevent hose bursting?
It provides thermal protection but does not replace burst containment sleeves.

Can it be installed on existing hoses?
Yes. A split version with hook-and-loop closure is available.

Is it oil resistant?
Yes. The silicone coating resists hydraulic fluids and oils.


Contact Us

If you require reliable hydraulic hose fire protection in extreme environments, Heat Resistant Hydraulic Hose Protective Fire Sleeve provides durable, flame-resistant performance and enhanced operational safety.

Contact us for technical specifications, compliance information, and bulk pricing.

Technical Datasheet
Material Silicone, fiberglass
Working temperature -40 - +260
Flammability VW-1
Melting point +1650
Standard Color Iron oxide red
MOQ 20 meter each size
Cutting tool Scissors

Notes:

The part NO. will be followed by BK for black color, GR for gray color, OR for orange color, BL for blue color.

Special thickness upon request

Special length or packing upon request.

Customs LOGO upon request.



Datasheet
Part Number Normal Inside diameter Meter for spool
Inches mm Dash # Meter
EFRS-6 1/4 6 -4 20
EFRS-8 5/16 8 -5 20
EFRS-10 3/8 10 -6 20
EFRS-11 7/16 11 -7 20
EFRS-13 1/2 13 -8 20
EFRS-16 5/8 16 -10 20
EFRS-19 3/4 19 -12 20
EFRS-22 7/8 22 -14 20
EFRS-25 1 25 -16 20
EFRS-29 1 1/8 29 -18 20
EFRS-32 1 1/4 32 -20 20
EFRS-35 1 3/8 35 -22 20
EFRS-38 1 1/2 38 -24 20
EFRS-41 1 5/8 41 -26 20
EFRS-44 1 3/4 44 -28 20
EFRS-48 1 7/8 48 -30 20
EFRS-51 2 51 -32 20
EFRS-57 2 1/4 57 36 20
EFRS-60 2 2/5 60 -38 20
EFRS-64 2 1/2 64 -40 20
EFRS-67 2 5/8 67 -42 20
EFRS-70 2 3/4 70 -44 20
EFRS-73 2 7/8 73 -46 20
EFRS-76 3 76 -48 20
EFRS-83 3 1/4 83 -52 20
EFRS-89 3 1/2 89 -56 20
EFRS-95 3 3/4 95 -60 20
EFRS-102 4 102 -64 20
EFRS-114 4 1/2 114 -72 20
EFRS-121 4 3/4 121 -76 20
EFRS-127 5 127 -80 20
EFRS-152 6 152 -96 20
