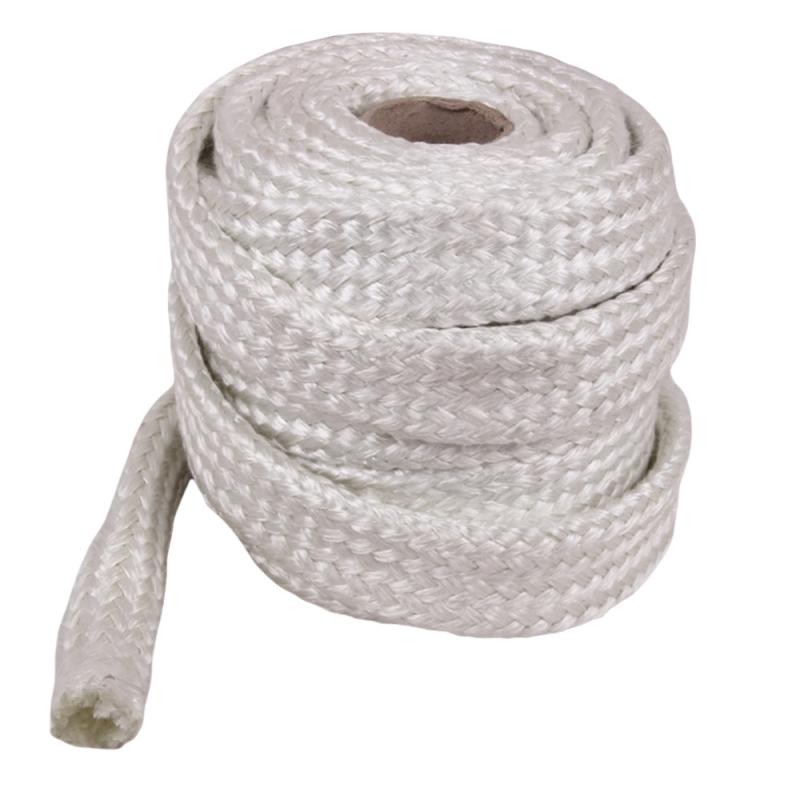

Hydraulic Hose Protection Braided Texturized Fiberglass Tubing is a high-temperature insulating sleeve designed to protect hydraulic hoses, cables, and pipelines from radiant heat and thermal exposure. Manufactured from braided texturized fiberglass yarn, this fiberglass tubing provides reliable heat resistance and stable performance in demanding industrial environments.
Suitable for applications near exhaust systems, furnaces, and high-temperature machinery, it helps reduce heat transfer, protect hydraulic fluids, and extend hose service life. This braided fiberglass sleeve is an effective solution for hydraulic hose protection in steel plants, automotive facilities, and heavy industrial equipment.
Payment:
FOB, EXW, CIFProduct Origin:
ChinaColor:
WhiteShipping Port:
Shanghai, Ningbo or any other portLead Time:
3-10 daysHydraulic Hose Protection Braided Texturized Fiberglass Tubing is a high-temperature insulating sleeve designed to protect hydraulic hoses, cables, and pipelines from radiant heat, surface contact, and thermal exposure. Manufactured from braided texturized fiberglass yarns, this fiberglass tubing provides reliable heat resistance and mechanical durability in demanding industrial environments.
It is widely used as a high-temperature hydraulic hose protection sleeve in steel plants, foundries, automotive facilities, and heavy machinery applications.
This sleeve is produced using high-quality texturized fiberglass yarn woven into a tubular braided structure.
Excellent thermal insulation properties
Non-combustible material
Stable under high temperature exposure
Flexible tubular form for easy installation
Resistant to most industrial chemicals
The braided construction provides balanced flexibility and mechanical stability.
Fiberglass tubing is specifically designed for heat protection applications.
Continuous working temperature up to 550°C (1022°F)
Short-term exposure up to 1000°C (1832°F)
Excellent resistance to radiant heat
Maintains structural integrity during thermal cycling
This makes it suitable for hydraulic systems operating near exhaust systems, furnaces, and high-temperature equipment.
Unlike nylon or polyester hose sleeves designed primarily for abrasion protection, this braided fiberglass tubing is engineered for:
Thermal insulation
Heat shielding
Protection from hot surfaces
Reducing heat transfer to hydraulic fluids
Improving hose longevity in high-heat zones
It is a thermal protection solution rather than a burst containment sleeve.
This fiberglass hose protection sleeve is widely used in:
Protection against molten splash and radiant heat
Hydraulic lines near exhaust systems
Engine compartment heat zones
High-temperature machinery
Furnace-related hydraulic systems
Exhaust-adjacent hose protection
Multiple inner diameters available
Standard wall thickness
Custom lengths upon request
Bulk roll supply for OEM applications
Optional coatings (such as silicone or vermiculite) can be provided for enhanced performance.
This sleeve is selected when applications require:
High-temperature resistance
Flame-resistant hose protection
Flexible thermal insulation
Reliable performance under heat exposure
Compared with polymer-based sleeves, fiberglass tubing provides superior heat resistance in extreme environments.
What is braided fiberglass tubing used for?
It is used to protect hydraulic hoses and cables from high temperatures and radiant heat.
Is fiberglass sleeve fire resistant?
Yes. Fiberglass is non-combustible and suitable for high-temperature environments.
Can this sleeve be used for abrasion protection?
It provides moderate abrasion resistance but is primarily designed for thermal insulation.
How does it compare to silicone fire sleeve?
Fiberglass tubing provides base thermal insulation, while silicone-coated sleeves offer additional molten splash resistance.
Is it suitable for exhaust-adjacent applications?
Yes. It is commonly used near exhaust systems and furnaces.
If you require high-temperature hydraulic hose protection, Braided Texturized Fiberglass Tubing provides reliable thermal insulation and durable performance in demanding industrial environments.
Contact us for technical specifications, customization options, or bulk inquiries.
| Part Number | Normal Inside diameter | Meter for spool | |||||||
| Inches | mm | Dash # | Meter | ||||||
| FGS-06 | 1/4 | 6 | -4 | 50 | |||||
| FGS-08 | 5/16 | 8 | -5 | 50 | |||||
| FGS-10 | 3/8 | 10 | -6 | 50 | |||||
| FGS-11 | 7/16 | 11 | -7 | 50 | |||||
| FGS-13 | 1/2 | 13 | -8 | 50 | |||||
| FGS-16 | 5/8 | 16 | -10 | 50 | |||||
| FGS-19 | 3/4 | 19 | -12 | 50 | |||||
| FGS-22 | 7/8 | 22 | -14 | 50 | |||||
| FGS-25 | 1 | 25 | -16 | 50 | |||||
| FGS-29 | 1 1/8 | 29 | -18 | 50 | |||||
| FGS-32 | 1 1/4 | 32 | -20 | 50 | |||||
| FGS-35 | 1 3/8 | 35 | -22 | 50 | |||||
| FGS-38 | 1 1/2 | 38 | -24 | 50 | |||||
| FGS-41 | 1 5/8 | 41 | -26 | 50 | |||||
| FGS-44 | 1 3/4 | 44 | -28 | 50 | |||||
| FGS-48 | 1 7/8 | 48 | -30 | 50 | |||||
| FGS-51 | 2 | 51 | -32 | 50 | |||||
| FGS-57 | 2 1/4 | 57 | 36 | 50 | |||||
| FGS-60 | 2 2/5 | 60 | -38 | 50 | |||||
| FGS-64 | 2 1/2 | 64 | -40 | 50 | |||||
| FGS-67 | 2 5/8 | 67 | -42 | 50 | |||||
| FGS-70 | 2 3/4 | 70 | -44 | 50 | |||||
| FGS-73 | 2 7/8 | 73 | -46 | 50 | |||||
| FGS-76 | 3 | 76 | -48 | 50 | |||||
| FGS-83 | 3 1/4 | 83 | -52 | 50 | |||||
| FGS-89 | 3 1/2 | 89 | -56 | 50 | |||||
| FGS-95 | 3 3/4 | 95 | -60 | 50 | |||||
| FGS-102 | 4 | 102 | -64 | 50 | |||||
| FGS-114 | 4 1/2 | 114 | -72 | 50 | |||||
| FGS-121 | 4 3/4 | 121 | -76 | 50 | |||||
| FGS-127 | 5 | 127 | -80 | 50 | |||||
| FGS-152 | 6 | 152 | -96 | 50 | |||||
