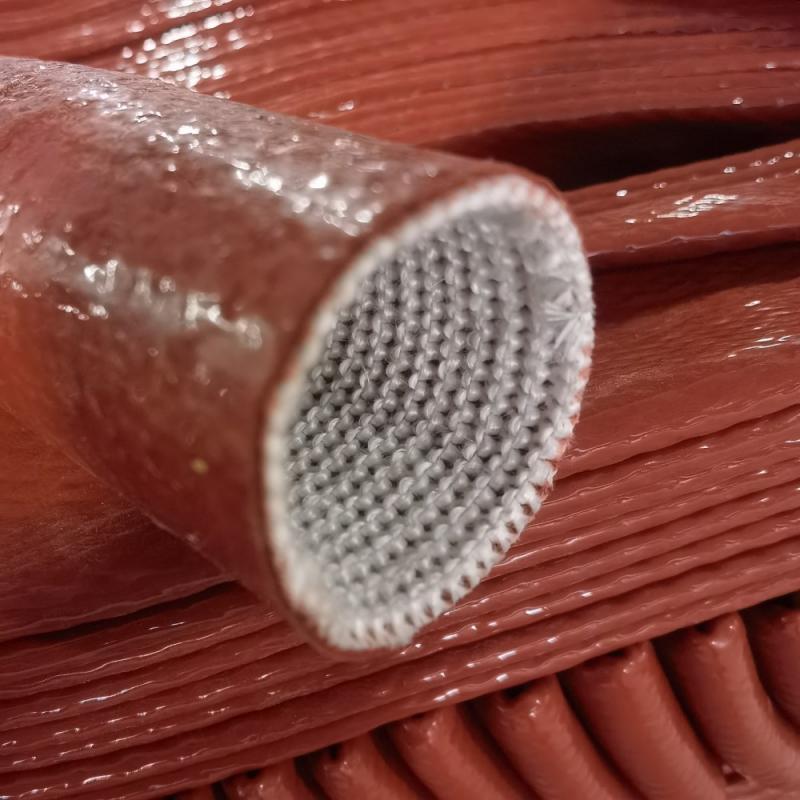

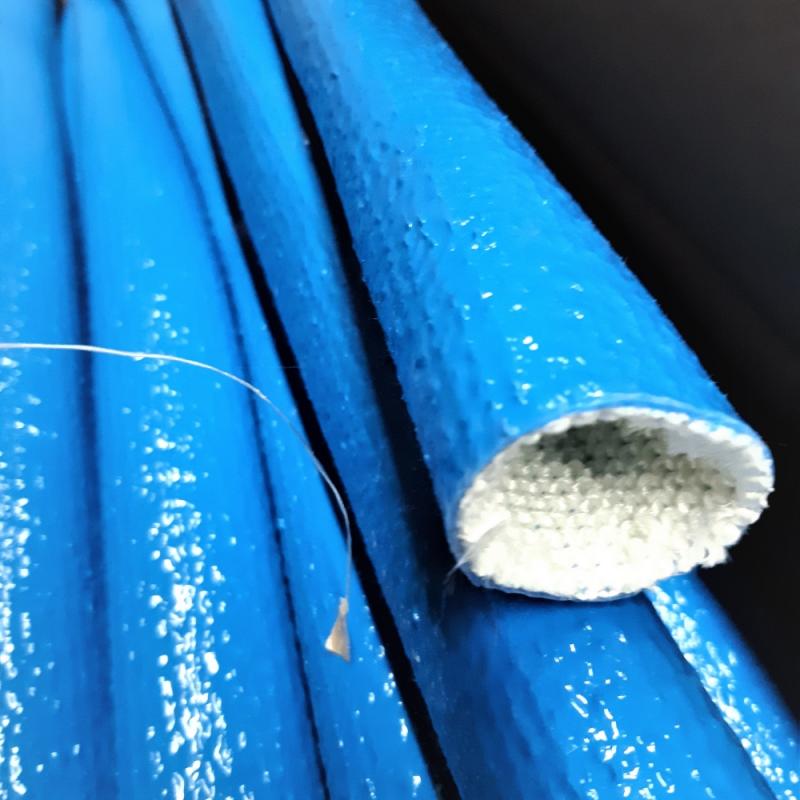

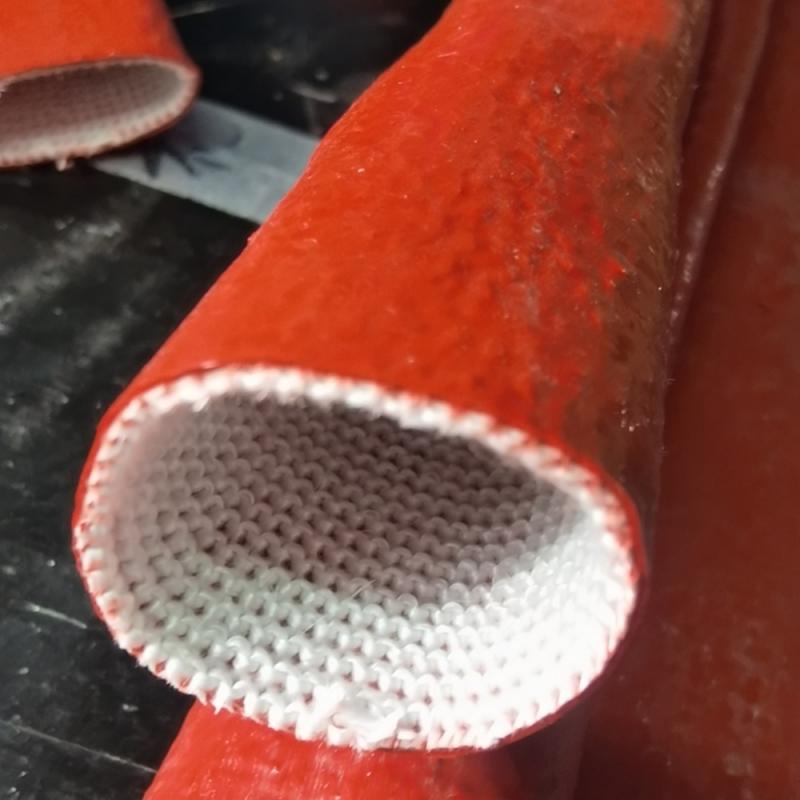

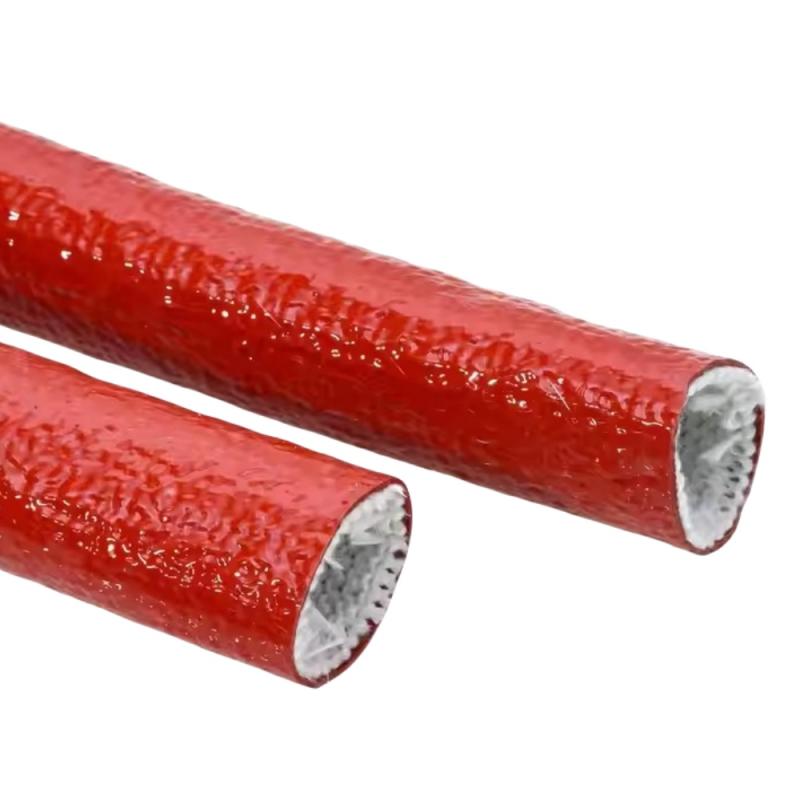

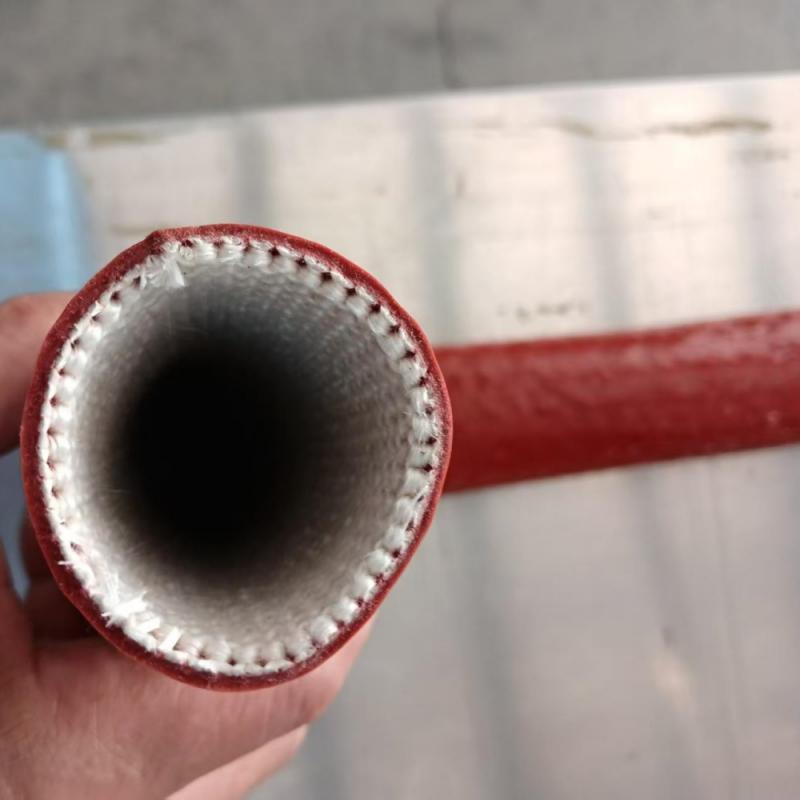

Hydraulic Hose Protector Knit Firesleeve
Armor Against Extreme Conditions
Ultimate Protection for Critical Systems
Our advanced Knit Firesleeve provides industrial-grade defense for hydraulic systems operating in high-risk environments. Engineered with interlocking flame-resistant fibers, this premium sleeve delivers superior resistance against:
Abrasion & mechanical wear
Flash fires (up to 1,000°C/1,832°F intermittent exposure)
Chemical splash & fluid degradation
UV radiation & weather extremes
Performance-Driven Design Features
Thermal Management - Reflective outer layer reduces radiant heat transfer
Flexible Armor - Braided construction maintains hose flexibility while preventing kinking
Quick Installation - Split design allows retrofit without disassembly
ISO Certified - Meets SAE J2308 and EN ISO 12127-2 standards
Industrial Applications
Ideal for:
Technical Superiority
Available in multiple diameters (6mm-200mm) with optional:
• Anti-static coating
• Custom color coding
• Abrasion-resistant outer wrap
Why Choose Our Firesleeve?
Third-party tested to outperform standard wraps with:
40% higher tensile strength
3X longer service life in abrasive conditions
65% faster heat dissipation
Protect Your Assets. Prevent Downtime.
Request sample specifications or consult our engineering team about custom solutions.
Built for mission-critical systems where failure is not an option.
| Technical Datasheet |
| Material |
Silicone, fiberglass |
| Working temperature |
-40℃ - +260℃ |
| Flammability |
VW-1 |
| Melting point |
+1650℃ |
| Standard Color |
Iron oxide red |
| MOQ |
20 meter each size |
| Cutting tool |
Scissors |
Notes:
The part NO. will be followed by BK for black color, GR for gray color, OR for orange color, BL for blue color.
Special thickness upon request
Special length or packing upon request.
Customs LOGO upon request.
| Datasheet |
| Part Number |
Normal Inside diameter |
Meter for spool |
| Inches |
mm |
Dash # |
Meter |
| KFRS-6 |
1/4 |
6 |
-4 |
20 |
| KFRS-8 |
5/16 |
8 |
-5 |
20 |
| KFRS-10 |
3/8 |
10 |
-6 |
20 |
| KFRS-11 |
7/16 |
11 |
-7 |
20 |
| KFRS-13 |
1/2 |
13 |
-8 |
20 |
| KFRS-16 |
5/8 |
16 |
-10 |
20 |
| KFRS-19 |
3/4 |
19 |
-12 |
20 |
| KFRS-22 |
7/8 |
22 |
-14 |
20 |
| KFRS-25 |
1 |
25 |
-16 |
20 |
| KFRS-29 |
1 1/8 |
29 |
-18 |
20 |
| KFRS-32 |
1 1/4 |
32 |
-20 |
20 |
| KFRS-35 |
1 3/8 |
35 |
-22 |
20 |
| KFRS-38 |
1 1/2 |
38 |
-24 |
20 |
| KFRS-41 |
1 5/8 |
41 |
-26 |
20 |
| KFRS-44 |
1 3/4 |
44 |
-28 |
20 |
| KFRS-48 |
1 7/8 |
48 |
-30 |
20 |
| KFRS-51 |
2 |
51 |
-32 |
20 |
| KFRS-57 |
2 1/4 |
57 |
36 |
20 |
| KFRS-60 |
2 2/5 |
60 |
-38 |
20 |
| KFRS-64 |
2 1/2 |
64 |
-40 |
20 |
| KFRS-67 |
2 5/8 |
67 |
-42 |
20 |
| KFRS-70 |
2 3/4 |
70 |
-44 |
20 |
| KFRS-73 |
2 7/8 |
73 |
-46 |
20 |
| KFRS-76 |
3 |
76 |
-48 |
20 |
| KFRS-83 |
3 1/4 |
83 |
-52 |
20 |
| KFRS-89 |
3 1/2 |
89 |
-56 |
20 |
| KFRS-95 |
3 3/4 |
95 |
-60 |
20 |
| KFRS-102 |
4 |
102 |
-64 |
20 |
| KFRS-114 |
4 1/2 |
114 |
-72 |
20 |
| KFRS-121 |
4 3/4 |
121 |
-76 |
20 |
| KFRS-127 |
5 |
127 |
-80 |
20 |
| KFRS-152 |
6 |
152 |
-96 |
20 |
